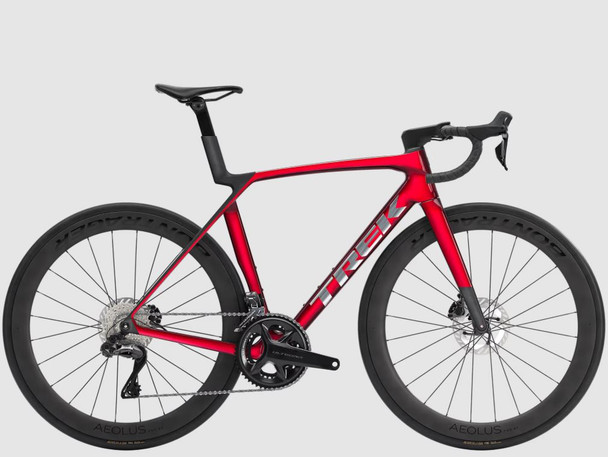

Trek Madone SL 7 Gen 8

 Trek Madone SL 7 Gen 8

NO SHIPPING- AVAILABLE FOR ON-LINE PURCHASE, IN STORE PICK UP- INQUIRE ABOUT LIMITED LOCAL DELIVERY

Madone SL 7 Gen 8 is a race-ready road bike built to give you the best of every world. Its featherweight build lets you soar up climbs, while aero geometry cuts drag on descents and IsoFlow keeps you comfortable through the miles. To give you the best balance of price and performance, it's built with 500 Series OCLV carbon, a two-piece handlebar and stem, and Shimano Ultegra Di2 wireless electronic drivetrain that delivers clean shifts every time, all topped off with carbon wheels for extra lightweight performance.

FRAME: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle.

FORK: Madone Gen 8 full Carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 chamfered thru axle.

WEIGHT: ML - 7.88 kg / 17.38lbs (with TLR sealant, no tubes)

Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Shifter

Shimano Ultegra R8170 Di2, 12 speed

Front derailleur

Shimano Ultegra R8150 Di2, braze-on, down swing

Rear derailleur

Shimano Ultegra R8150 Di2, 34T max cog

*Crank

Size: XS, S- Shimano Ultegra R8100, 50/34, 165mm length

Size: M- Shimano Ultegra R8100, 50/34, 170mm length

Size: ML, L- Shimano Ultegra R8100, 50/34, 172.5mm length

Size: XL- Shimano Ultegra R8100, 50/34, 175mm length

Bottom Bracket: Praxis, T47 threaded, internal bearing

Cassette: Shimano Ultegra R8101, 11-34, 12 speed

Chain: Shimano Ultegra/ XT M8100- Max chainring size: 1x: 54T, 2x: 56/43

WHEELS-

Wheel front

Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle

Wheel rear

Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle

Skewer front

Bontrager Switch chamfered thru axle

Skewer rear

Bontrager Switch chamfered thru axle, removable lever

Tire

Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28mm

Tire part

Bontrager TLR sealant, 6oz

Max tire size

32mm (as measured, see manual for details)

*Saddle

Size: XS, S
Bontrager Aeolus Elite, austenite rails, 155mm width

Size: M, ML, L, XL
Bontrager Aeolus Elite, austenite rails, 145mm width

*Seatpost

Size: XS, S, M, XL
Madone aero carbon seatpost, 0mm offset, short length

Size: ML, L
Madone aero carbon seatpost, 0mm offset, long length

*Handlebar

Size: XS
Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 35cm control width, 38cm drop width

Size: S
Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 37cm control width, 40cm drop width

Size: M, ML, L
Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 39cm control width, 42cm drop width

Size: XL
Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 41cm control width, 44cm drop width

Handlebar tape

Trek EcoTack

*Stem

Size: XS
Trek RCS Pro, -7 degree, 80mm length

Size: S, M
Trek RCS Pro, -7 degree, 90mm length

Size: ML, L
Trek RCS Pro, -7 degree, 100mm length

Size: XL
Trek RCS Pro, -7 degree, 110mm length

Brake rotor

Shimano CL800, centerlock, 160mm

Rotor size

Max brake rotor sizes: 180mm front, 160mm rear
